6 Pack LM2596 DC to DC High Efficiency Voltage Regulator 3.0-40V to 1.5-35V Buck Converter DIY Power Supply Step Down Module

Features:
- DC to DC step down module
- Thickened circuit boards
- Advanced solid-state capacitor
- Short circuit and over-temperature protection
- 100% d, sealed in anti-static packaging

Kindly Note:
1. Input voltage must be 1.5 V higher than the output voltage, no boost

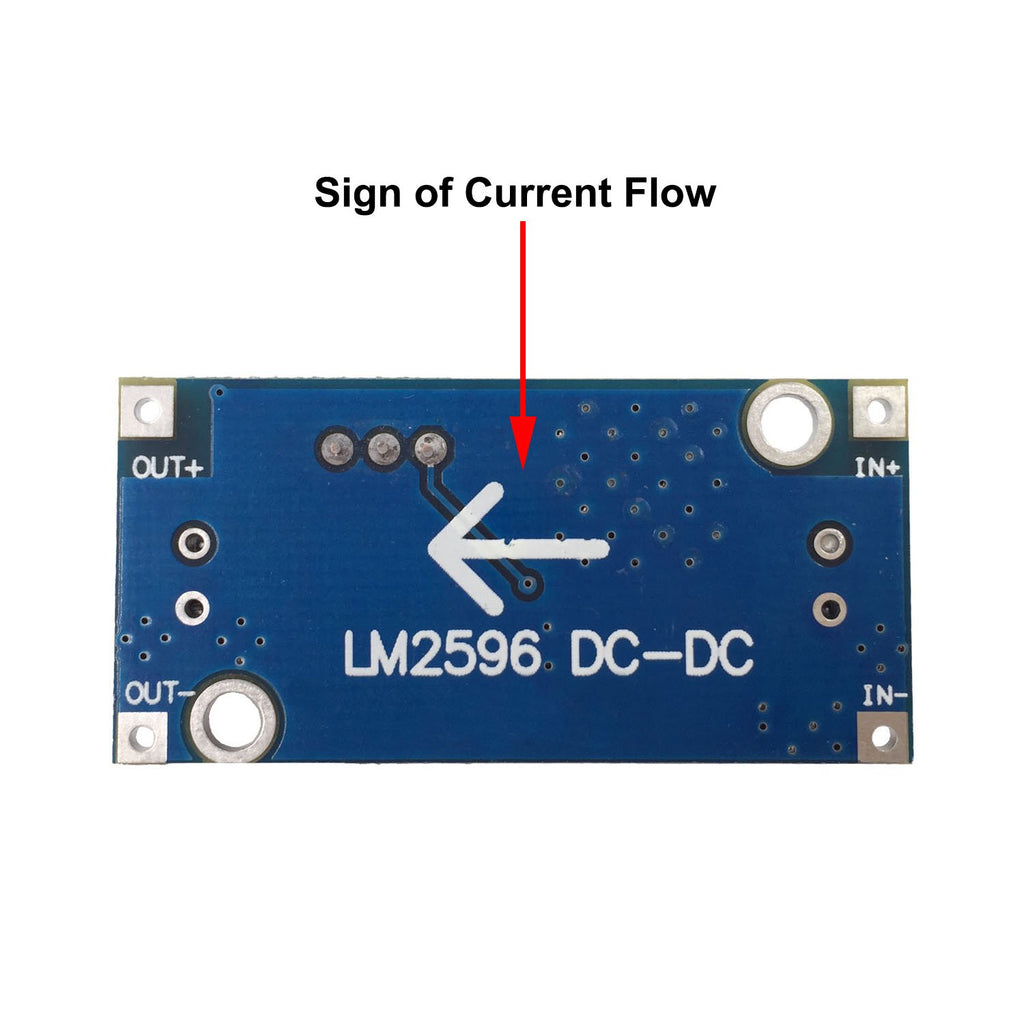

2. Do not reverse the input and output interface
3. Keep output under 2.5A and use a heat sink when for a long time working

Specifications:
- Type: DC-DC buck converter
- Input voltage: DC 3V - 40V

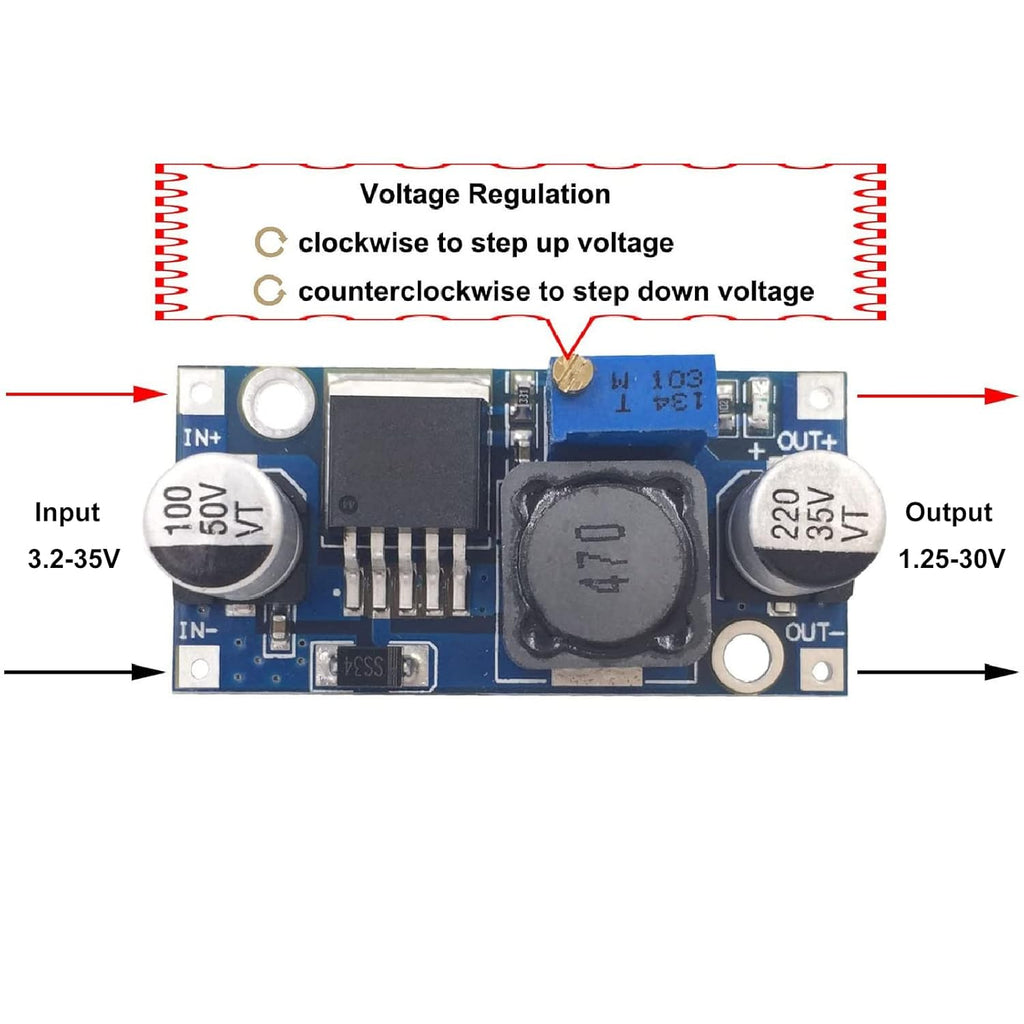

- Output Voltage: DC 1.5V - 35V (adjustable)
- Output Current: 3A (max.)
- Conversion Efficiency: 92% (max.)
- Switching Frequency : 65KHz
- Rectification: non-synchronous rectification
- Module property: non-isolated buck module
- Operating Temperature: -45℃ to +85℃
- Load Regulation: ± 0.5%
- Voltage Regulation: ± 2.5%

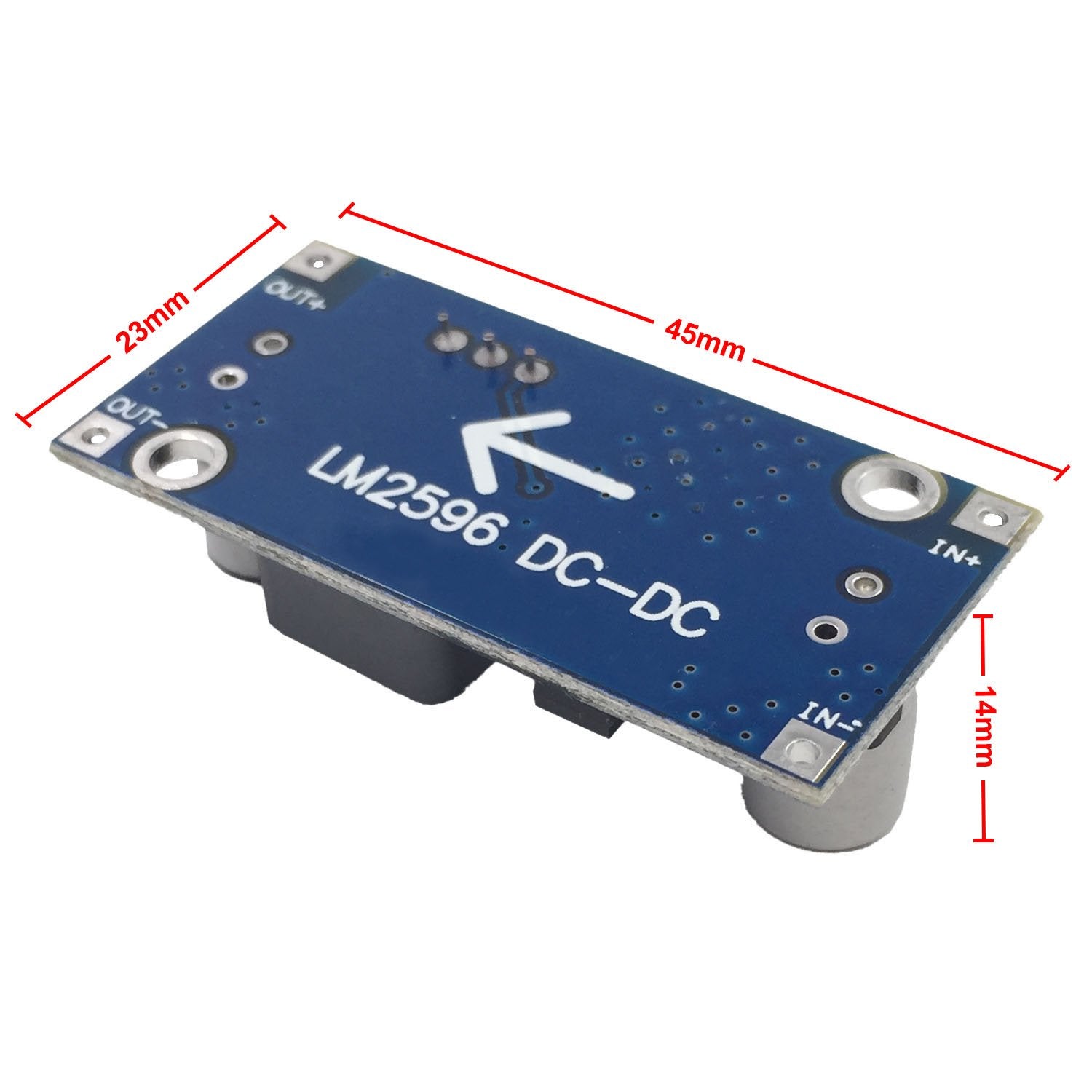

- Size(L x W x H): 45*23*14mm / 1.77*0.91*0.55inch
- Weight: 14g

Package List:

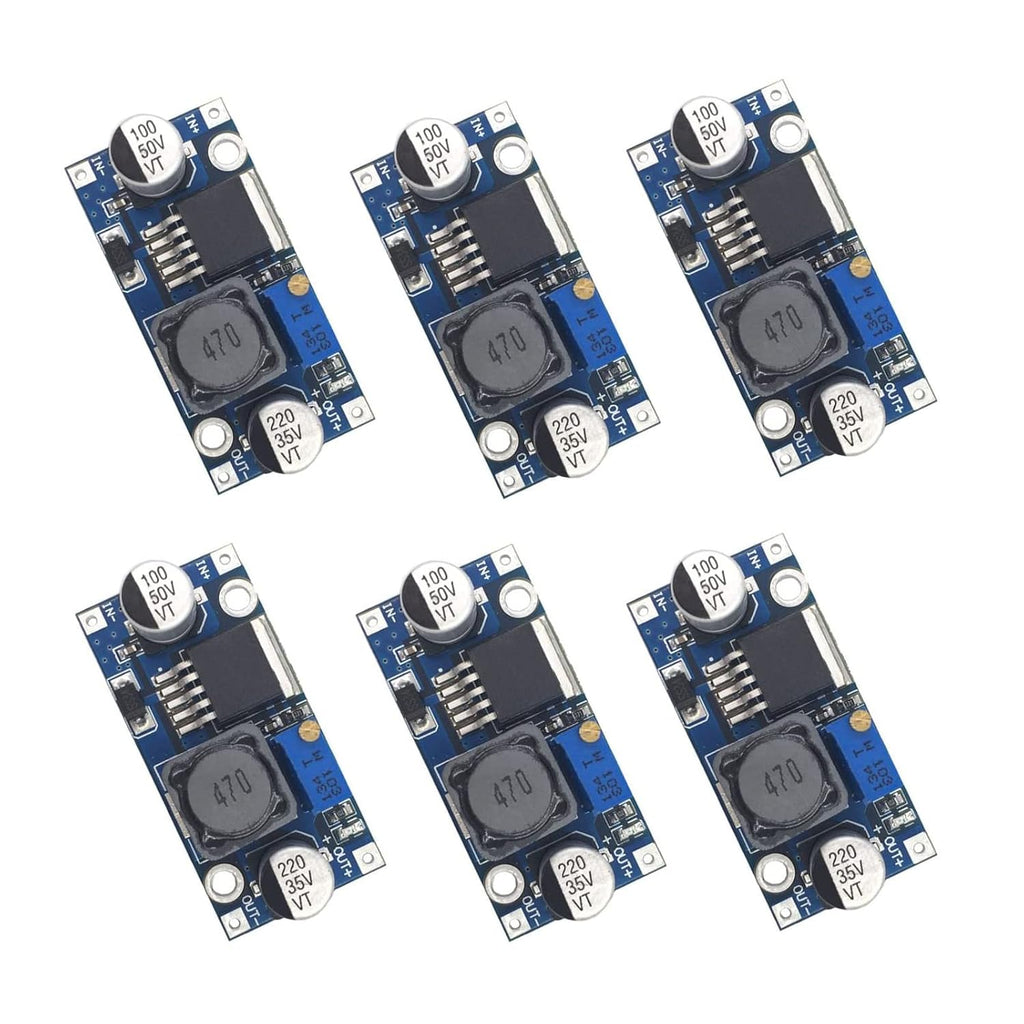

6x DC to DC Buck Converter Module
